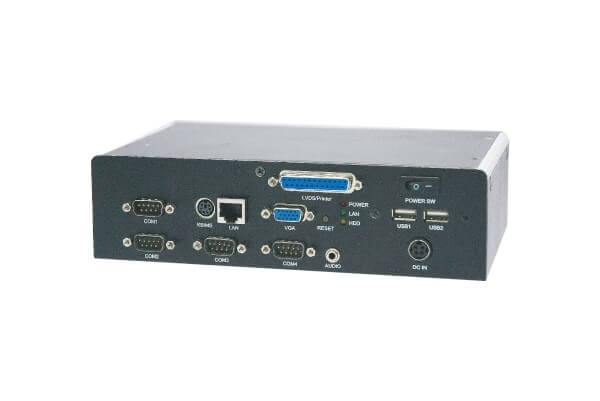

AR-ES0652

(VIA Mark)Fanless Embedded System with VIA Mark Corefusion Processor Feature Support VIA Mark CoreFusion 800MHz 1 x SO-DIMM Socket Support PC133 SDRAM up to 512KB VGA/LVDS Audio, USB, IDE, CFII, COM,LAN

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	VIA Mark 800MHz
Chipset	VIA Mark CoreFusion Processor + 686B
Front Side Bus	133MHz
Memory	1 x 144-pin SO-DIMM socket support PC133 SDRAM up to 512MB, 256MB pre- installed
BIOS	Award
RTC	System
Hardware Monitoring	Yes
WatchDog Timer	Software programmable 1~255 sec.
Security	AES, RNG
OS	Windows XP/XP Embedded/CE, Linux

[Video/Display]

Video Controller	VIA UniChrome Pro 2D/3D integrated graphic controller
Video Interface	1 x VGA port, 1 x 18-bit LVDS port

[Ethernet]

Connector	1 x RJ45
Controller	Realtek RTL8100C (10/100Mbps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	1 x IDE (44-pin)
SSD	1 x Compact Flash Type II socket

[I/O]

Serial Port	3 x RS-232, 1 x RS-232/422/485 (4 x DB9)
USB Port	2 x USB 1.1 (2 x external port)
Audio	Stereo Audio output
Keyboard/Mouse	PS/2 keyboard and mouse connector

[Mechanical & Environment]

Construction	Highly Robust Aluminum
Color	Black
Dimension	220mm x 130 mm x 60mm (W x D x H)
Power Supply	100~240V AC input 60W Power Adapter
Power Mode	Lockable DC plug-in jack
Indicator	AT mode, Power LED, LAN LED
Operating Temp.	0~45℃ (32~113°F)
Storage Temp.	-20~80℃ (-4~176°F)
Relative Humidity	-20~80oC (-4~176oF)
Safety	0 to 90% @ 40oC, non-condensing, CE, FCC class A
