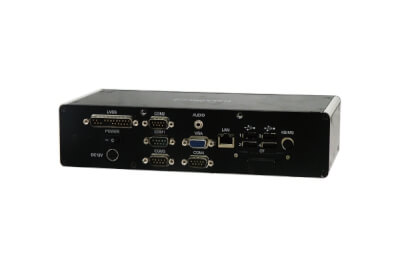

AR-ES0631ET

(Geode LX 800 500MHz)Fanless Embedded System with AMD LX 800, Extended Temperature Solution, 4 x COM, 4 x USB2.0 Feature Support AMD Geode LX 800 Fanless and Extended Temp, Design 1 x SO-DIMM Socket Support DDR SDRAM up to 1GB VGA PCI-104 Interf

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Onboard Ultra Low Power AMD Geode LX 800 500MHz
Chipset	AMD LX 800 + CS5536
Memory	1 x 200-pin SO-DIMM socket support 400MHz DDR SDRAM up to 1GB, 256MB pre- installed
Battery	Lithium Battery, 3V 220mAH
BIOS	Award
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows XP Embedded/CE, Linux

[Video/Display]

Video Controller	AMD Geode LX Integrated video controller
Video Interface	1 x VGA port

[Ethernet]

Connector	1 x RJ45
Controller	Realtek RTL8100C (10/100Mbps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5
IDE	1 x E-IDE
SSD	1 x Compact Flash socket

[I/O]

Serial Port	3 x RS-232, 1 x RS-232/422/485 (4 x DB9)
USB Port	4 x USB2.0 (4 x external ports)
Audio	Stereo Audio output
GPIO	4 input, 4 output
Parallel Port	1 x LPT port
Keyboard/Mouse	PS/2 keyboard and mouse connector
Expansion Slot	1 x PCI-104 slot

[Mechanical & Environment]

Construction	Fanless, Aluminum Chassis
Color	Black
Dimension	Without mounting bracket：250mm x 117mm x 59mm (W x D x H) , With mounting bracket：278mm x 117mm x 67mm (W x D x H)
Power Supply	90~264V AC input, 12V DC ouptput power adapter. Lockable DC plug-in jack. DC input module：AR-B9427
Power Requirement	AT：12V Single Voltage Input
Operating Temp.	-40~75℃ (-40~167°F) for CF only
Storage Temp.	-40~80℃ (-40~176°F)
Relative Humidity	5 to 60% @ 75℃, non-condensing
Safety	CE, FCC classA

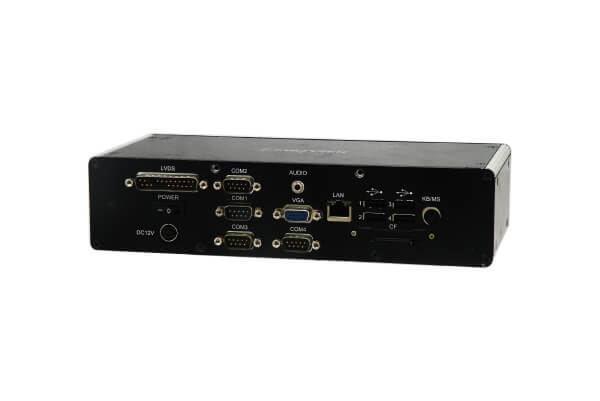

Fotogalerie

Ke stažení

Datasheet
