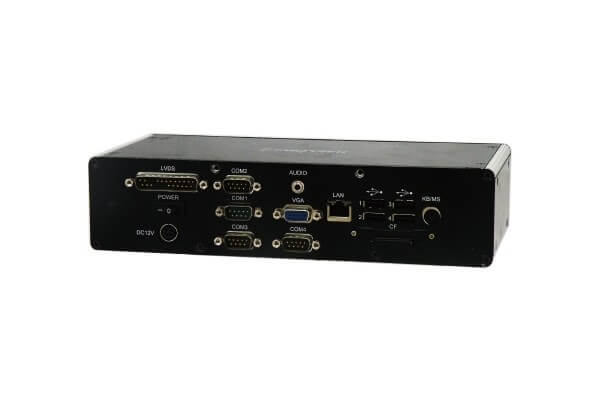

AR-ES0631

(Geode LX 800 500MHz)Fanless Embedded System with AMD LX 800 Feature Support AMD Geode LX 800 1 x SO-DIMM socket Support DDR SDRAM up to 1GB VGA/LVDS PCI-104 Interface COM, USB2.0, IDE, CFII, Audio

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Onboard Ultra Low Power AMD Geode LX 800 500MHz
Chipset	AMD LX 800 + CS5536
Memory	1 x 200-pin SO-DIMM socket support 200MHz DDR SDRAM up to 1GB, 256MB pre- installed
Battery	Lithium Battery, 3V 220mAH
BIOS	AWARD
RTC	System
Hardware Monitoring	Yes
WatchDog Timer	Software programmable 1~63 sec.
OS	Windows XP/XP Embedded/CE, Linux

[Video/Display]

Video Controller	AMD Geode LX Integrated video controller
Video Interface	1 x VGA port, 1 x 18-bit LVDS port

[Ethernet]

Connector	1 x RJ45
Controller	Realtek RTL8100C (10/100Mbps)

[Storage]

HardDisk Storage	Anti-shock drive bay for 2.5'' HDD
IDE	1 x E-IDE
SSD	1 x Compact Flash socket

[I/O]

Serial Port	3 x RS-232, 1 x RS-232/422/485 (4 x DB9)
USB Port	4 x USB2.0 (4 x external port)
Audio	Stereo Audio output
GPIO	4 input, 4 output
Parallel Port	1 x LPT port
Keyboard/Mouse	PS/2 Keyboard and Mouse Connector
Expansion Slot	1 x PCI-104 slot

[Mechanical & Environment]

Construction	Fanless, Aluminum Chassis
Color	Black
Dimension	250mm x 117mm x 59mm (W x D x H)
Power Supply	90 to 264V AC input, 12V DC ouptput Power adapter, Lockable DC plug-in jack
Power Requirement	AT:12V single voltage input
Operating Temp.	0~45℃ (32~113°F)
Storage Temp.	-20~80℃ (-4~176°F)
Relative Humidity	0 to 90% @ 40℃, non-condensing
Safety	CE, FCC class A

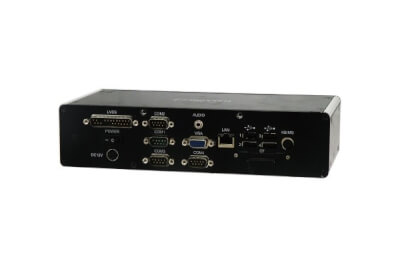

Fotogalerie

Ke stažení

Datasheet
