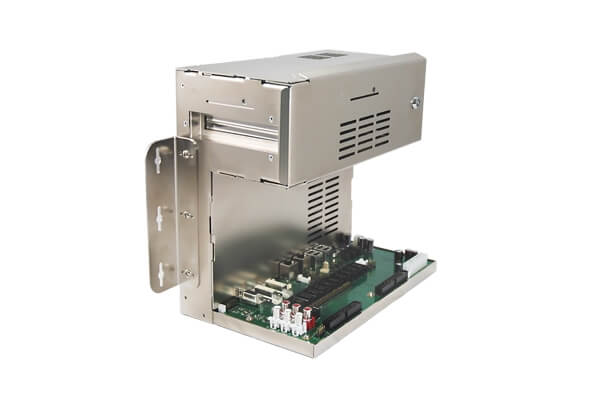

ACE-S5600

Gaming System uses Intel Core 2 Duo Processor with Full Gaming Features. Flexible Design via Main Board and I/O Board Feature 1. Intel GME965 with Core 2 Duo, Celeron M 2. Battery Backup SRAM 512KB x 3 3. Selected Write Protect EEPROM up to 4MB

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Supports Intel Core 2 Duo, Celeron M Processors
Chipset	Intel GME965 + ICH8M
Front Side Bus	533/667/800MHz
Memory	Onboard 512MB DDR2 SDRAM, 1 x 200-pin SO-DIMM socket support 533/667MHz DDR2 SDRAM up to 2.5GB
Battery	One CR2032 (220mAh) for system RTC. Three Re-chargable for SRAM, Second RTC, AGA
BIOS	Award
RTC	1 x system RTC and 1 x secured RTC
Hardware Monitoring	Yes
WatchDog Timer	Software programmable 1~255 sec./min.
OS	Windows XP/XP Embedded, Linux

[Video/Display]

Video Controller	Integrated Intel GMA 3100 graphic controller
Video Interface	1 x VGA port, 2 x DVI-D port

[Ethernet]

Connector	2 x RJ45
LAN	2 x Giga LAN (Secondary LAN is optional)

[Storage]

SATA	2 x SATA 2 port (Option)
SSD	2 x Compact Flash socket

[I/O]

Serial Port	9 x RS-232 (1 x pin header from MB, 8 x DB9 from Backplane). 2 x RS- 422/485 (pin header), 2 x ccTalk
USB Port	8 x USB2.0 (4 x external port on Backplane, 2 x onboard pin header on MB, 2 x onboard pin header in bNAND)
Audio	5.1 Audio output (Standard speaker connector). 6 Watts per channel. Type D amplifier
GPIO	32-bit Isolation GPI in 2 x 20 pin header. 32-bit Darlington GPO in 2 x 20 pin header
Keyboard/Mouse	PS/2 keyboard and mouse lock/unlock jumper
Expansion Slot	1 x PCI Express x16 slot

[Mechanical & Environment]

Dimension	259mm x 161mm x 247mm (W x D x H)
Power Supply	ATX power connector or optional 100W DC to DC converter
Power Requirement	-20~70℃ (-4~158°F)
Operating Temp.	-10~60℃ (14~140°F)
Relative Humidity	10 to 90% @ 40℃, non-condensing
Safety	CE, FCC

[Other Features]

Gaming I/O
-GPIO 32-bit Isolation GPI in 2 x 20 pin header, 32-bit Darlington GPO in 2 x 20 pin header

-Hard Meter Smart Hard Meter 8-bit (2 x 4 pin header) with Current sense feedback

-Intrusion Logger External intrusion logger 7-bit ( 2 x 4 pin header)

-NVRAM Triple 512K x 8-bit low power SRAM chips. Support “Independent” and “Replicate” write mode (Select by jumper). Each SRAM with data clear mini jumper (Option 3 x 512KB FRAM).

-Security 1. TPM 1.2 (Infineon SLB 9635 TT 1.2). 2. ProtectU. 3. iButton socket. 4. EEPROM. 5. Jurisdiction ROM
