ACE-S5296FL

Intel 915GME Fanless and Gaming System with Italian JAMMA Interface Comply with Comma 6A Feature 1. 915GME with Pentium M/Celeron M 2. 14-bit Interruptible Digital Input 3. 15-bit High Current Output 4. Italian JAMMA Interface 5. Dual 256KB Batte

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Socket 478 support Intel Pentium M & Celeron M
Chipset	Intel 915GME + ICH6M
Front Side Bus	400/533MHz
Memory	2 x 240-pin DIMM socket support 533/667MHz Dual Channel DDR2 SDRAM up to 2GB, 512MB pre-installed
BIOS	Award
RTC	1 x system RTC and 1 x secured RTC
Hardware Monitoring	1. CPU voltage. 2. CPU and system temperature. 3. System and CPU FAN speed. 4. System Fan speed control.
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows XP/XP Embedded, Linux

[Video/Display]

Video Controller	Intel 915GME integrated GMA 900 graphic controller
Video Interface	2 x VGA port

[Ethernet]

Connector	1 x RJ45
Controller	Intel 82562ET PHY (10/100Mbps)

[Storage]

IDE	1 x IDE (40-pin)
SATA	1 x SATA port
SSD	1 x Compact Flash Type II socket (Support UDMA)

[I/O]

Serial Port	4 x RS-232 (4 x DB9, COM4 selectable for ccTalk)
USB Port	6 x USB2.0 (2 x external, 4 x internal)

[Mechanical & Environment]

Dimension	278.3mm x 189.8mm x 81.21mm (W x D x H)
Power Requirement	5V and 12V input to golden finger
Indicator	Power LED, Storage LED, Power_In LED
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	-20~70℃ (-4~158°F)
Safety	CE, FCC class A

[Other Features]

Storage
-DOM 1 x bNAND Angle 1 Type

Audio
-Codec Stereo

-Amplifier 2 x 6 Watts amplifier

Gaming Function
-I/O Interface Italian JAMMA interface

-Digital Input 14 x optical isolated input

-Digital Output 15 x 1000 mA digital output

-Timer 4 x 16-bit interruptible timer

-Readable DIP Switch 2 x 8-bit DIP switch

-Battery Backuped SRAM 2 x 256KB (Optional 2 x 512KB)

-EEPROM 1K Bytes
-Intrusion Logger 1 x chassis intrussion switch + 3 bits on golden fingers

-Random Number Generator 16-bit

-Security iButton socket and ProtectU

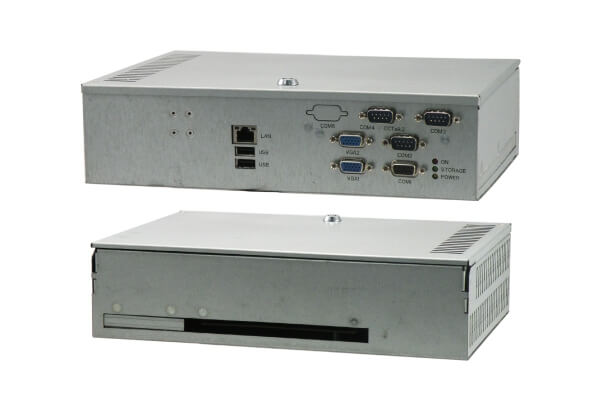

Fotogalerie
