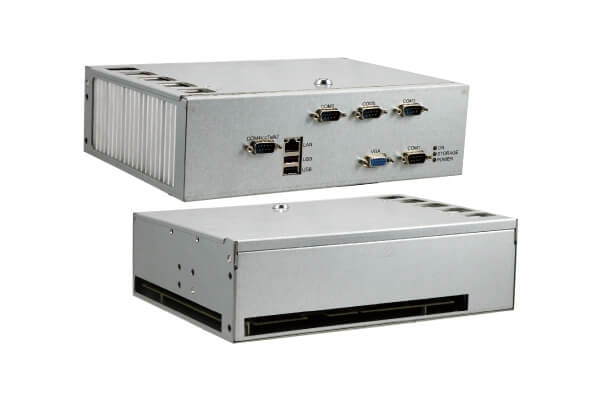

ACE-S5290FL

Fanless and Dustproof Pentium M Gaming System Feature 1. 915GME with Pentium M/Celeron M 2. 29-bit Interruptible Digital Input 3. 43-bit High Current Output 4. JAMMA & 72-pin Golden Finger Interface 5. Dual 256KB Battery Backup SRAM with Battery

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Socket for Intel 478 uFC-PGA Pentium M & Celeron M
Chipset	Intel 915GME + ICH6M
Memory	2 x 240-pin DIMM socket support 533/667MHz Dual Channel DDR2 SDRAM up to 2GB, 512MB pre-installed
BIOS	Award
RTC	1 x system RTC and 1x secured RTC
Hardware Monitoring	1. CPU voltage. 2. CPU and System Temperature. 3. System and CPU FAN speed. 4. System Fan Speed Control.
WatchDog Timer	Software programmable 1~255 sec.
OS	Windows XP/XP Embedded, Linux

[Video/Display]

Video Controller	Intel 915GME integrated GMA 900 graphic controller
Video Interface	1 x VGA port, 1 x 18-bit LVDS and LCD PWM connector (Optional)

[Ethernet]

Connector	1 x RJ45
Controller	Intel 82562ET PHY (10/100Mbps)

[Storage]

IDE	1 x IDE (40-pin, Option)
SATA	2 x SATA 1 port (Option)
SSD	1 x Compact Flash socket TypeII (Suooprt UDMA)

[I/O]

Serial Port	5 x RS-232 (5 x DB9, COM4 selectable for ccTalk)
USB Port	4 x USB2.0 (2 x external port, 2 x onboard pin header)

[Mechanical & Environment]

Color	Black
Dimension	252mm x 188mm x 80mm (W x D x H)
Power Requirement	5V and 12V input to Golden finger
Indicator	Power LED, HDD LED, Power_In LED
Operating Temp.	0~50℃ (32~122°F)
Storage Temp.	20~70℃ (-4~158°F)
Safety	CE, FCC class A

[Other Features]

Audio
-Codec AC97 Stereo

-Amplifier 6 Watts per channel. Type D amplifier

Gaming Function
-I/O Interface JAMMA & 72-pin Golden Finger Interface

-Digital Input 29 x optical isolated input

-Digital Output 43 x 500 mA digital output

-Timer 4 x 16-bit interruptible timer

-Readable DIP Switch 2 x 8-bit DIP switch

-Battery Backuped SRAM 2 x 256KB (Optional 2 x 512KB)

-EEPROM 1K Bytes

-Intrusion Logger 1 x chassis intrussion switch + 5 bits on golden fingers

-Random Number Generator 16-bit

-Security iButton socket and ProtectU
