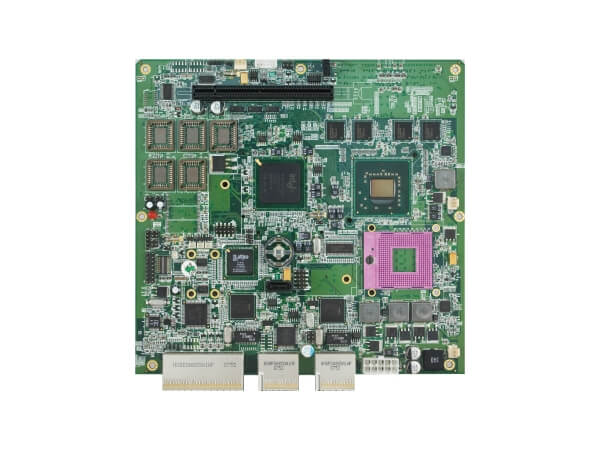

ACE-B5600

Core 2 Duo Video Gaming Board with UGM VGA Upgrade Feature 1. Intel GME965 with Core 2 Duo, Celeron M 2. Onboard 512MB DDR2 Memory and One SO-DIMM socket 3. Dual 512KB Battery Backup SRAM. Optional Third 512KB SRAM 4. 64-bit GPIO and 8 x Hard Mete

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Detail Fotogalerie Ke stažení

Detail

Specifications

[System]

Cpu	Supports Intel Core 2 Duo, Celeron M Processors
Chipset	Intel GME965 + ICH8M
Memory	Onboard 512MB DDR2 SDRAM, 1 x 200-pin SO-DIMM socket support 533/667MHz DDR2 SDRAM up to 2.5GB
Battery	One CR2032 (220mAh) for system RTC. Three Re-chargable for SRAM, Second RTC, AGA
BIOS	Award
RTC	1 x system RTC and 1x secured RTC
WatchDog Timer	Software programmable 1~255 sec./min.
Security	1. TPM 1.2 (Infineon SLB 9635 TT 1.2) 2. ProtectU 3. iButton socket 4. EEPROM 5. Jurisdiction ROM
OS	Windows XP/XP Embedded, Linux

[Video/Display]

Video Controller	Integrated Intel GMA 3100 graphic controller
Video Interface	1 x VGA (pin header), 2 x DVI-D port on AGB

[Ethernet]

Connector	Signal to AGB
LAN	2 x Giga LAN (Secondary LAN is optional)

[Storage]

SATA	3 x SATA 2 Port (One is onboard, 2 on AGB)
SSD	2 x Compact Flash socket

[I/O]

Serial Port	9 x RS-232 (1 x DB9 onboard, 8 x TTL on AGB)
USB Port	8 x USB2.0 (2 x onboard pin header, 2 x pin header in bNAND, 4 x external port on AGB)
Audio	5.1 Audio output on AGB
GPIO	32-bit Isolation GPI and 32-bit Darlington GPO to AGB
Keyboard/Mouse	PS/2 keyboard and PS/2 mouse signal to AGB
Expansion Slot	1 x PCI Express x16 slot

[Mechanical & Environment]

Dimension	200mm x 200mm
Power Supply	10-pin ATX power connector
Operating Temp.	-10~60℃ (14~140°F) without PCI Express card
Storage Temp.	-20~70℃ (-4~158°F)
Relative Humidity	10 to 90% @ 40℃, non-condensing
Safety	CE, FCC

[Other Features]

Gaming I/O
-Hard Meter Smart Hard Meter 8-bit with current sense feedback to AGB

-Intrusion Logger External Intrusion logger 7-bit to AGB

-NVRAM Triple 512K x 8-bit low power SRAM chips. Support “Independent” and “Replicate” write mode (Select by jumper). Each SRAM with data clear mini jumper (Option 3 x 512KB FRAM).
