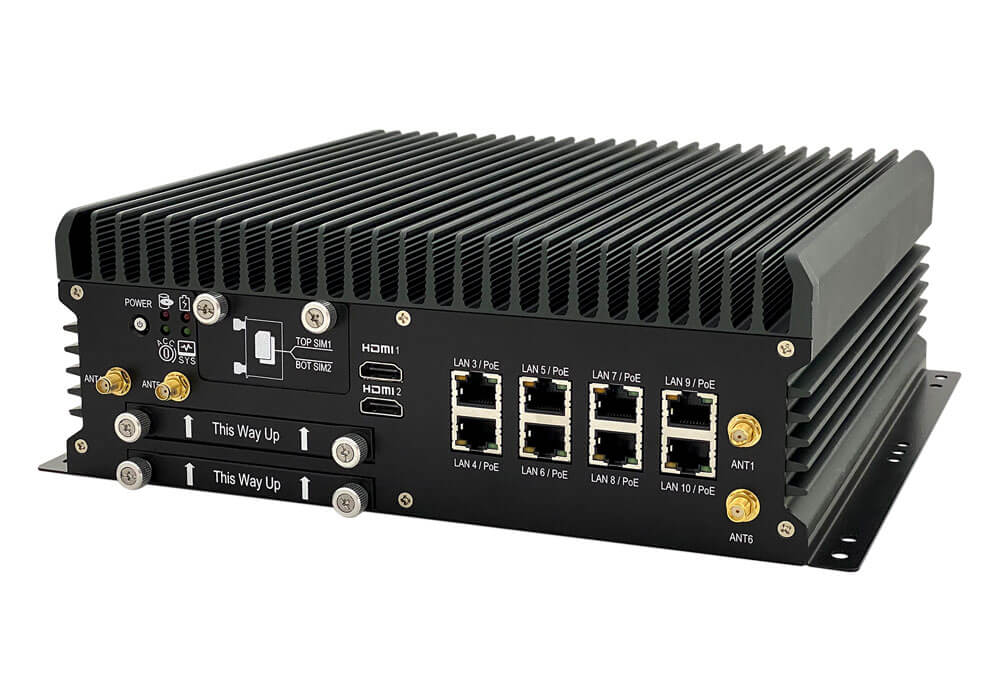

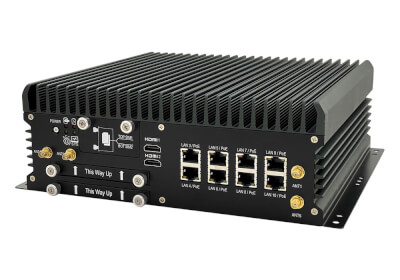

ABOX-5210G4
Intel Gen 10th 10 Cores Xeon, i9 CPU w/ 10 x GbE (Optional 8 x PoE)/ 3 x COM/ 3 x DP/ 2 x HDMI/ 4 x USB 3.2 Gen 1x1/ NVIDIA® GeForce GTX 1060 GPU/ 9-48V Input AI GPU Computing
Základní informace
- Intel GEN 10th 10 Cores Xeon W-1290TE / i9-10900TE
- NVIDIA® GeForce GTX 1060 GPU
- Support 1280 CUDA Cores
- 8 x DI, 4 x DO and 3 x RS-232/422/485
- 1 x M.2 B key, 1 x M.2 A-E key & 3 x miniPCIe expansion slots
- Dual Hot Swappable SATA Storage RAID 0,1,5
- 9-48V DC Input and Operating Temp.: -40~70°C
- 10 x GbE RJ45 (Optional 8 x PoE and 8 x M12 X coded connectors)
- Rolling Stock EN 50155 and EN 50121-3-2 certified
The ABOX-5210G4 is powered by Intel Gen 10th 10 Cores Xeon, i9 CPU w/ 10 x GbE with NVIDIA GeForce GTX 1060 GPU AI GPU Computing. It can provide high computing performance on graphic processing by harnessing the power of its graphics processing unit (GPU). ABOX-5210G4 features the Dual Hot Swappable SATA Storage RAID 0,1,5, which allows more flexibility for hardware maintenance and expansion. ABOX-5210G4 offers the best solution for customers and it can be adapted to various industrial requirements, including: Smart Solutions (Smart Patrol, Smart Factory Automation Control System), Surveillance Systems (Bus Surveillance Fleet Management, Outdoor Video Surveillance System), and Visual Management (Automatic License Plate Recognition, Vision Control System, Mining Machines).
Specifikace
| CPU | Intel Gen10 Xeon W-1290TE (20M Cache 2.0GHz up to 4.6GHz)* Intel Gen10 Core i9-10900TE (20M Cache 2.0GHz up to 4.5GHz) Intel Gen10 Core i7-10700TE (16M Cache 2.0GHz up to 4.4GHz) Intel Gen10 Core i5-10500TE (12M Cache 2.3GHz up to 3.7GHz) Intel Gen 10 Core i3-10100TE (6M Cache 2.3GHz up to 3.6GHz) Intel Gen10 Core G5900TE (4M Cache 3.0GHz) *Use only with Intel W480E |
| Chipset | Q470E / W480E |
| Memory | 2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB (Optional ECC support with Xeon W-1290TE) |
| LAN Chipset | 9 x Intel i210-AT and 1 x i219LM (support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL |
| Watchdog | 1 ~ 255 Level Reset |
| TPM | 2.0 |
| Serial Port | 3 x RS 232/422/485 (option additional 1 x RS 232/422/485) |
| USB Port | 4 x USB 3.2 Gen 1x1 Ports |
| LAN | 10 x RJ45 Ports for GbE (Optional 8 with M12 X coded connectors and 8 x POE total Max.120W) |
| Video Port | 3 x DP (Intel built-in GPU), 2 x HDMI Ports (MXM graphics) |
| DIO Port | 8 xDI (5~48VDC) and 4 x DO (5VDC, 100mA) |
| Audio | 1 x Line-out, 1 x Line-in and 1 x Mic-in |
| Expansion Bus | 2 x Full Mini-PCle Slots and 1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 slot 1x M.2 A-E Key 2230 slot, 1 x M.2 B Key 3042 slot w/ 2 x SIM Card Sockets for WWAN |
| MXM Graphics | NVIDIA® GeForce GTX 1060 GPU (1280 CUDA Cores) w/6GB GDDR5 Max Resolution (HDMI 2.0b) : 4096 x 2160 @ 60Hz |
| Built-in Graphics | Intel® UHD Graphics 630 for z9/i9/i7/i5/i3, Intel® UHD Graphics 610 for G5900TE Max Resolution (DP 1.2) : 4096 x 2340 @ 60Hz |
| Storage | 2 x 2.5" Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5 1 x M.2 M key 2280 slot supports NVMe and SATA SSD * Thermal heatsink is required for M.2 storage. Please contact sales window for more information. |
| Power Input | 9V -48V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Battery Backup (Option) | Internal Battery Kit for 10 Mins Operating (P/N: BAT-5200 kit, Operating Temp. -20 ~ 60°C) |
| Dimensions (LxWxH) | 260 x 250 x 95 mm |
| Mounting | Wall-mount |
| Weight | 5300g (bare-bone) |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Temp. | -40ºC ~ 60ºC w/ GTX1060 w/0.6 m/S airflow |
| Storage Temp. | -40°C ~ 80°C |
| Certifications | CE, FCC Class A, E13, EN50155 |
