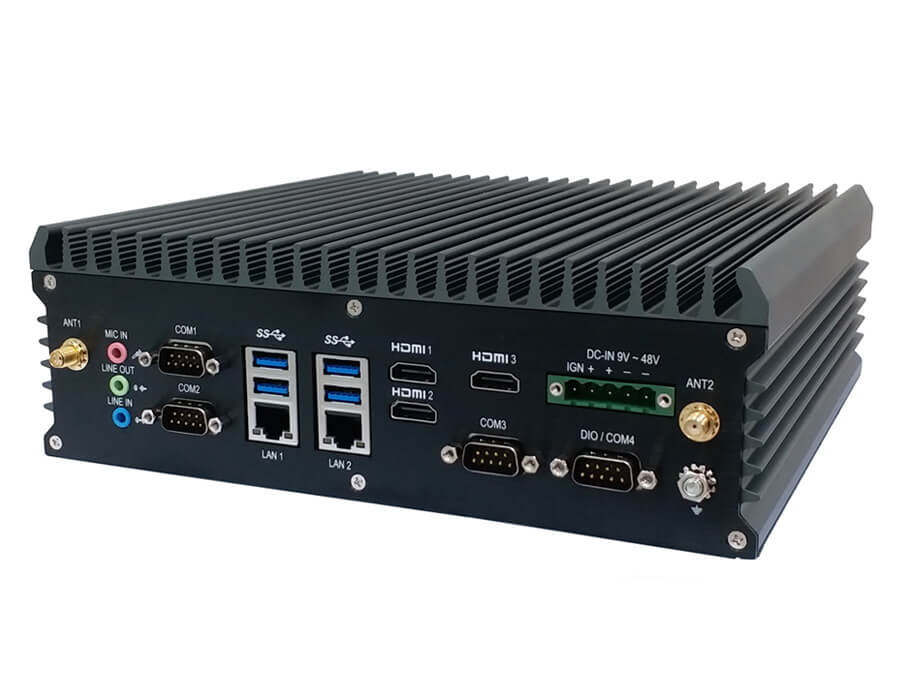

ABOX-5000G2
Intel 6th/7th-Gen Quad Core Xeon/ Core i7/i5/i3 CPU with 6 GbE/ 3 COM/ 5 HDMI/ 4 USB 3.0/ NVIDIA® GeForce GT 1030 GPU/ 9-48V/ AI GPU Computing
Základní informace
- Intel 6th/7th-Gen Quad Core Xeon/ Core i7 CPU
- NVIDIA® GeForce GT 1030 GPU
- Support 384 CUDA Cores
- 8 x GPI, 4 x GPO and 3 x RS-232/422/485
- Dual Hot Swappable SATA Storage, RAID 0,1,5
- 9-48VDC Input and Operating Temp.: -40 ~ 70°C
- 6 x GbE LAN (Optional for 4 x PoE)
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Xeon E3-1268L v5 (8M, cache 2.4~3.4GHz) Intel Gen6 Core i7-6700TE (8M Cache 2.4GHz up to 3.4GHz) Intel Gen6 Core i5-6500TE (6M Cache 2.3GHz up to 3.3GHz) Intel Gen6 Core i3-6100TE (4M Cache 2.7GHz) |
| Memory | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| Chipset | Intel Q170/C236 Platform Controller Hub |
| LAN Chipset | 5 x Intel i210-AT and 1 x i219LM (Support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL |
| Watchdog | 1 ~ 255 Level Reset |
| TPM | 2.0 |
| I/O | |
| Serial Port | 3 x RS-232/422/485 (Auto Direction Control) |
| USB Port | 4 x USB 3.0 Ports |
| LAN | 2 x RJ45 GbE + 4 RJ45 PoE Max. toal 100W |
| Video Port | 5 x HDMI Ports |
| DIO Port | 8 x GPI and 4 x GPO |
| Audio | 1 x Line-out, 1 x Line-in and 1 x Mic-in |
| Expansion Bus | 3 x Full Mini-PCIe Slots and 1 x M.2 A-E Key 2230 Slot (2 x SIM Card Sockets for 3G/LTE) |
| GRAPHICS | |
| Graphics | NVIDIA® GeForce GT 1030 GPU (384 CUDA Cores) Support for OpenGL 4.5 and OpenCL™ 1.2 Support for DirectX® 12 (Feature Level 12_0) features |
| Resolution | Max Resolution (HDMI 2.0b) : 7680x3840@60Hz |
| STORAGE | |
| Type | 2 x 2.5" Drive Bay for SATA Type HDD/SSD, RAID 0,1,5 1 x mSATA |
| POWER REQUIREMENT | |
| Power Input | 9V -48V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| ENVIRONMENTAL | |
| Operating Temp. | -40°C ~ 70°C |
| Storage Temp. | -40°C ~ 80°C |
| Relative Humidity | 0% RH – 95% RH |
| Certifications | CE, FCC Class A, E13 |
| Patent No. (Taiwan) | M447854, M448011 |
| MECHANICAL | |
| Construction | Aluminum Alloy |
| Mounting | Wall-mount |
| Weight | 3860g (Barebone) |
| Dimensions (LxWxH) | 260(L) x 226(W) x 89(H) mm |
