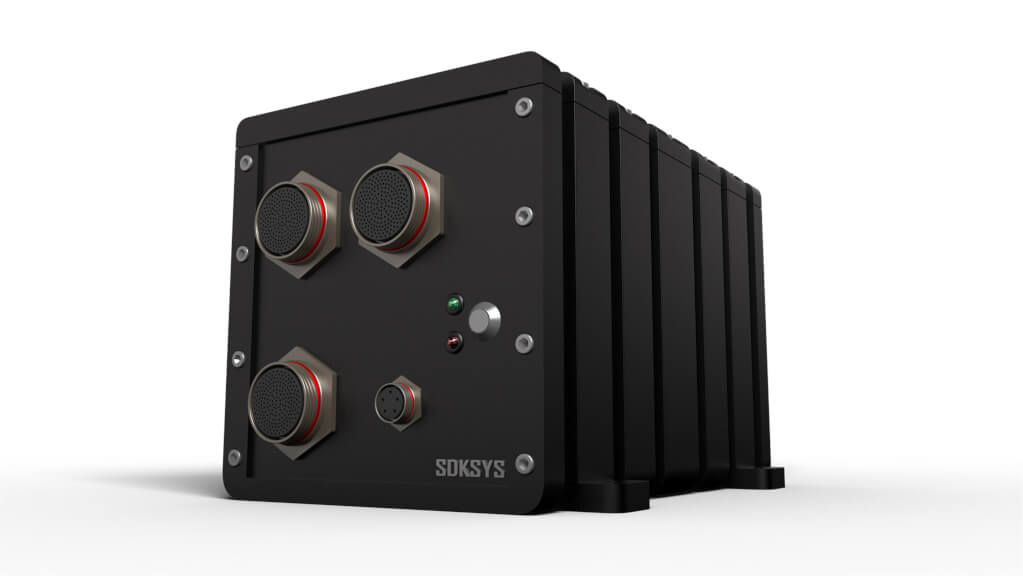

SD-73RW
Military Rugged NAS Storage
Základní informace
The SD-73RNW NAS Storage solution is ideal for demanding applications in
Military, Airborne, UAVs, Navy Communications, Armoured and Tracked Military Vehicles
- 6th Gen Intel Xeon E3-1505L Processor at 2.0GHz (Turbo 2.8GHz)
- Chipset (codename: Skylake)
- Up to 32GB dual channel ECC DDR4 at 2133 MHz
- Support up to 16TB Capacity
- Built-in 8 Port 10/100/1000 Mbps Switch (Option to 12 ports )
- Wide input power range +9V to +36V DC
- 6th Gen Intel Xeon E3-1505L Processor at 2.0GHz (Turbo 2.8GHz)
- Built-in UPS function with SMART battery charging for uninterrupted power supply and battery backup functionality
Specifikace
| CPU | Intel Xeon E3-1505L Processor at 2.0GHz (Turbo 2.8GHz) |
| Memory | Up to 32GB dual channel ECC DDR4 at 2133 MHz |
| Network interface | 8 Port 10/100/1000 Mbps Switch (Option to 12 ports ) Ethernet OAM, and performance monitoring. Web GUI or CLI Management x Gigabit Ethernet 10/100/1000 Auto-negotiation Layer 2 Switching 802.1Q VLAN switch with 8K MACs and 4K VLANs Push/pop up to two VLAN tags IPv4/IPv6 multicast Policing with storm control and MC/BC protection RSTP and MSTP support Link aggregation (IEEE 802.3ad) Independent and shared VLAN learning (IVL, SVL) Jumbo frame support L3 Switching IPv4 Unicast: RIPv1/RIPv2 |
| Storage | Support up to 16TB Capacity; Both SLC and MLC options available Removable SATA3 6Gb/s 2.5" Military grade SSD drives |
| Raid Controller | LSI SAS3108 controller provides up to 12Gb/s data transfer Up to 1GB DDRIII 1833MHz cache (ECC DDR3 memory) that efficiently stores data in transition 8 internal ports Supported Devices SAS/SATA RAID Level Supported 0, 1, 10, 5, 50, 6, 60 |
| Power Requirements | Wide range input +9V to +36V DC Reverse polarity protection Overload protection and transient voltage suppression Built-in UPS function with SMART Lithium battery 4 Li-Ion 18650 cells charging for uninterrupted power supply and battery backup functionality |
| Environmental | Operating temperature: -30ºC to +70ºC Storage temperature : -40°C to 80°C Operational Altitude (20,000ft) MIL-STD-810G, Method 500.5, Procedure II. Humidity: MIL-STD-810G, Method 507.5, and Procedure II. Vibration: MIL-STD-810G method 514.6, procedure I. Mechanical Shock: MIL-STD-810G, Method 516.6 Procedure I & V. EMC /EMI : MIL-STD-461F |
Fotogalerie
Ke stažení
