81022 Rugged Micro Computer

Aqeri 81022 je miniaturní Box PC speciálně uzpůsobené pro použití v těžkých provozních podmínkách, kde je vyžadováno nejsubtilnější možné mechanické řešení.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

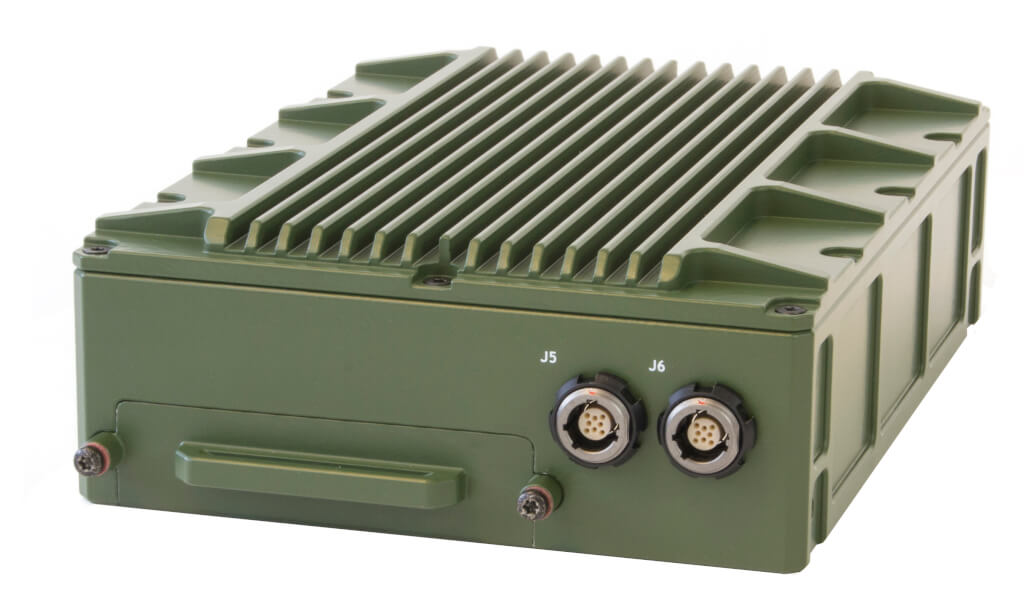

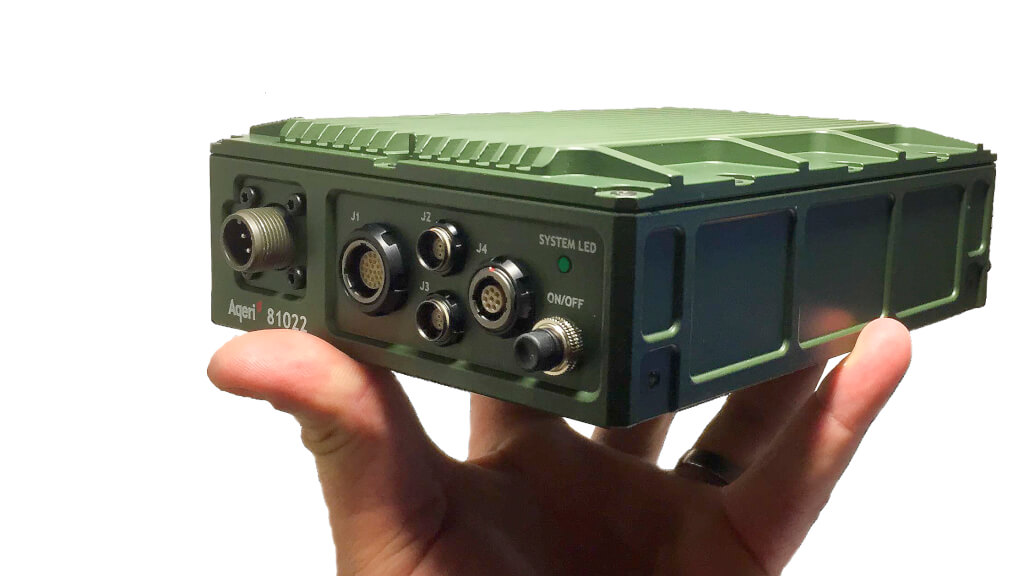

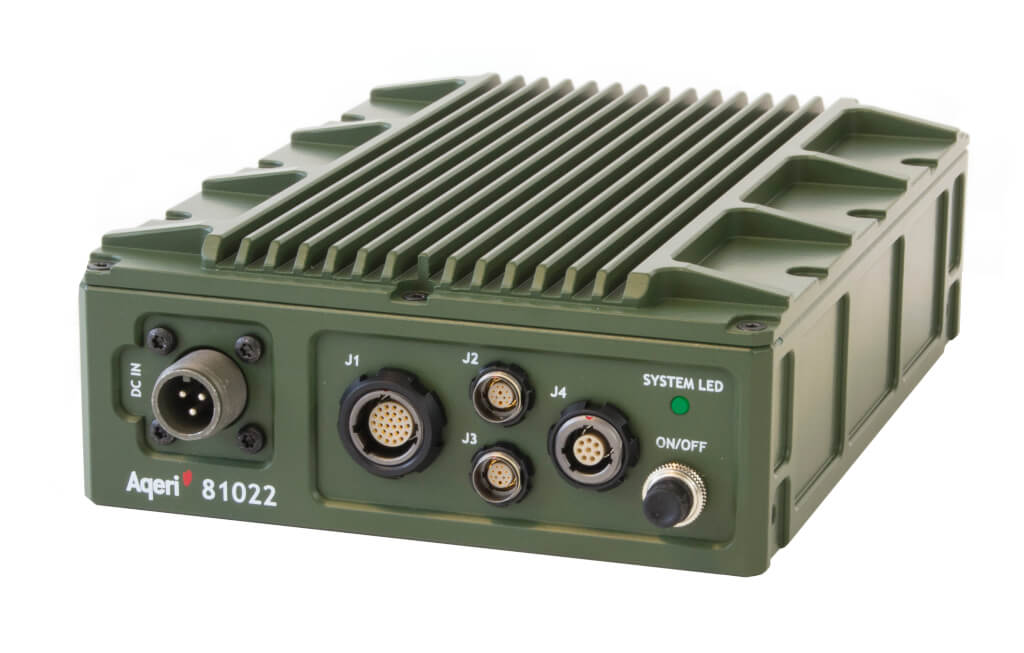

Aqeri 81022 is a Rugged Micro Computer in a very small form factor made for space critical applications. The compact rugged computer is suitable for all kind of  harsh military environments and is optimal for instance in combat vehicles, helicopters and UAVs. Aqeri 81022 is so small it fits in just one hand! It doesn't compromise with power though, it comes with the 5th generation of Intel® i7 processor, Solid State drive and up to 16GB memory. Aqeri 81022 is fanless and as a standard the Aqeri field proven ASCC functions (Aqeri Supervisor and Climate Control) is implemented. The chassis is fully sealed for protection against dust and corrosive elements. Aqeri 81022 is designed to meet military standards such as MIL-STD-461E, MIL-STD-1275D and MIL-STD-810G.

Specifikace

TECHNICAL SPECIFICATION
Processor: Intel Core i7-2720QM 2.2-3.3GHz, 6Mb cache, 4x core, 8x threads
Storage:  1-2 2,5" SSD
Memory:  DDRIII 1366MHz up to 16Gb
Graphics: Intel HD Graphics 3000
I/O Interfaces:
USB: x4
Gigabit Ethernet: x2 (Fiber as option)
VGA: x1
RS232: x1

CONNECTORS
USB: AMC
Gigabit Ethernet: AMC
VGA: AMC
RS232: AMC

PHYSICAL CHARACTERISTICS
Dimensions: 220 x 88 x 280mm (WxHxD)
Weight: 3kg
Color: Green, other optional

ELECTRICAL SPECIFICATIONS
Power requirements: 9-32VDC
Power consumption: Max 120W at 28VDC (excluding heaters)

ENVIRONMENTAL CHARACTERISTICS
Designed to fulfill (other standards on request): MIL-STD-461E Army Ground Level
  MIL-STD-1275D
  MIL-STD-810G
  European CE
TEMPEST SDIP-27 Level A, B, C: Option
Protection: IP65
Temperature Operating: -35°C to +55°C
Vibration Operating: 5-500Hz, 2,18g rms
Shock Operating: 40g, 11ms, ½ sine wave
Humidity: 5% to 95% non condensing
Altitude Operating: 3000m
